A Guide to the Different Types of CCTV Cameras (and Alarm Systems Cameras)

Installing CCTV and alarm equipment is one of the most effective ways to improve site security. Visible cameras, when combined with sirens, floodlights, and audio warnings, are proven to deter criminal activity before it happens.

With surveillance technology evolving rapidly, it’s important to understand the options available. At O.R.P Surveillance, we’ve put together this guide to the most common types of CCTV cameras and alarm equipment you may encounter when researching a surveillance system for your site.

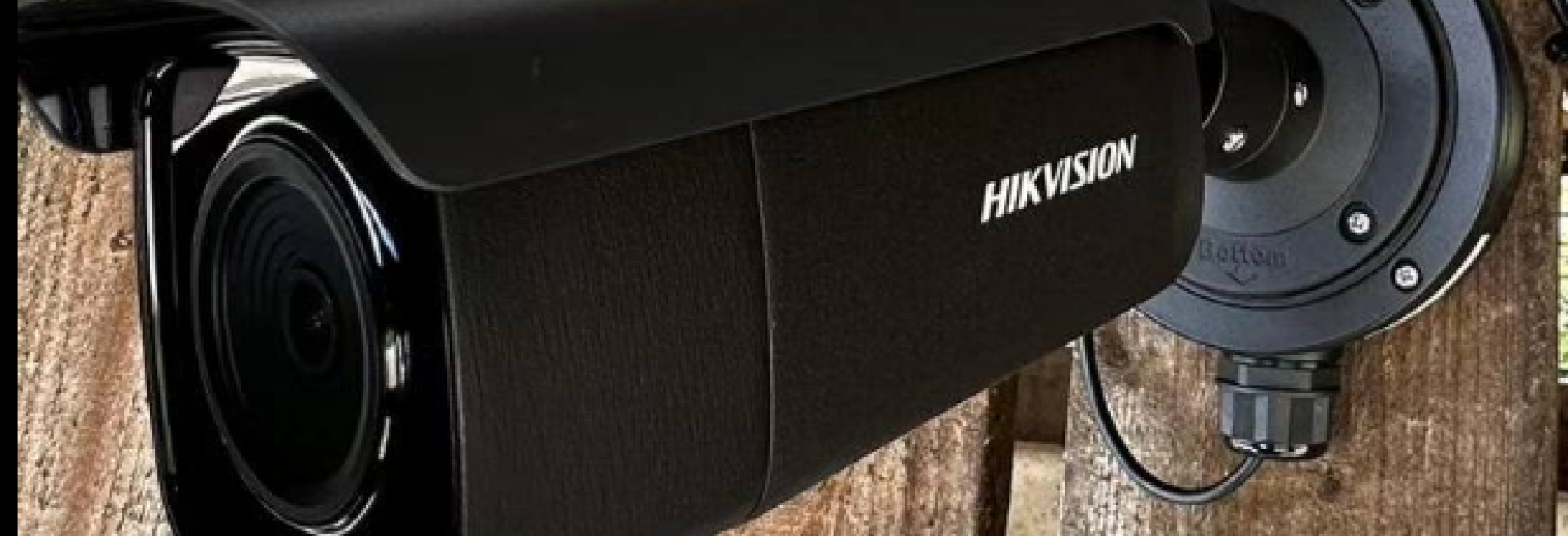

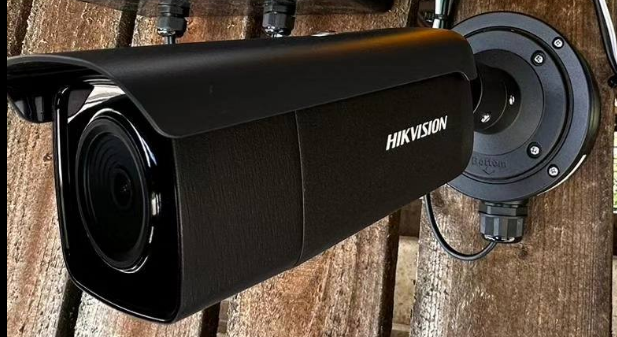

Bullet Cameras

Bullet cameras are one of the most recognisable CCTV camera types, thanks to their classic cylindrical shape. They are commonly used where you need to clearly see activity over a longer range, such as access roads or perimeter fencing.

Bullet cameras are available in a wide range of sizes and specifications, from compact short-range models to larger, more powerful cameras designed for long-distance viewing. Depending on the model, bullet cameras can offer:

• Viewing ranges from a few metres up to several hundred metres, making them ideal for long-distance viewing;

• More easily recognised, due to their shape, which can make them an excellent deterrent;

• Infrared or colour night vision

• Weatherproof and corrosion-resistant housings for exposed locations

Because bullet cameras are highly visible, they act as a strong visual deterrent. They are particularly effective for perimeter security, gateways and access roads, and for monitoring vehicle or pedestrian approach routes.

Their directional design makes it very clear what area is being monitored, which can discourage unauthorised access before it happens.

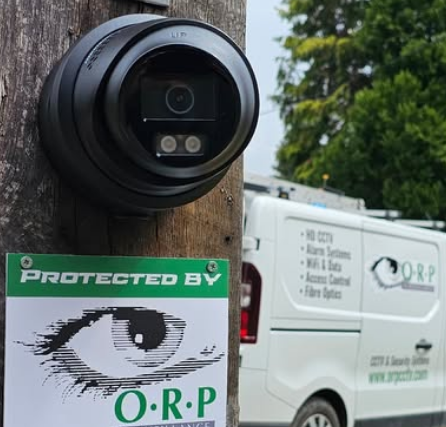

 Turret Cameras

Turret cameras are one of the most popular modern CCTV camera types due to their flexibility, reliability, and image quality. They are available in a large number of variations, with manufacturers offering multiple housing sizes, from very compact units to larger, more powerful models. Turret cameras are sold with a variety of different resolutions, and most offer infrared, low-light colour, or hybrid night vision options.

Rather than being enclosed, turret cameras have an open lens design. This reduces infrared reflection and glare, which is why they can deliver superior night-time images compared to some other camera styles. Turret cameras are compact, discreet, and extremely versatile.

• Excellent night-time image quality

• Less prone to glare and reflection than some camera types

• Suitable for both indoor and outdoor use


Their small size and reliable performance make turret cameras a popular choice for general site monitoring.

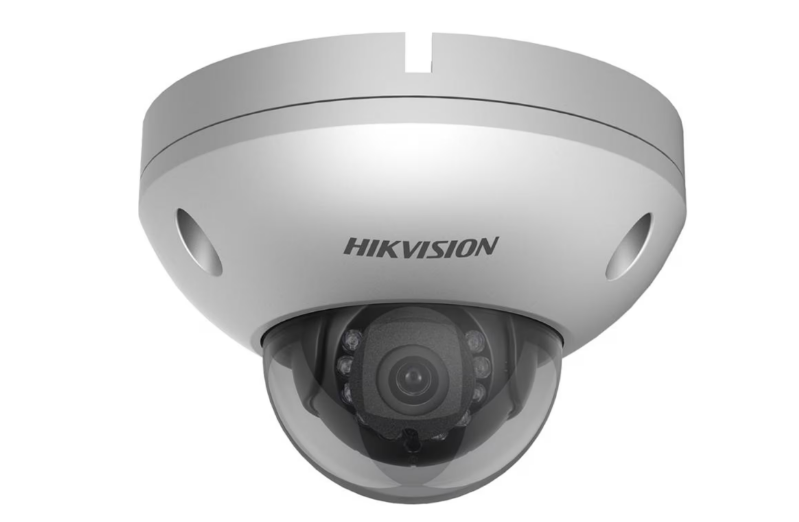

 Dome Cameras

Dome cameras are similar in function to turret cameras but are housed within a protective dome casing, offering additional durability and discretion. As the lens is concealed behind a tinted dome, it is often difficult to tell which direction the camera is facing, which can add an extra layer of security.

• Discreet design blends into most environments

• Strong protection against tampering or damage

• Ideal for areas accessible to the public or staff

They are a popular choice where durability and appearance are just as important as performance, and are well suited for public-facing areas, offices, and internal monitoring.

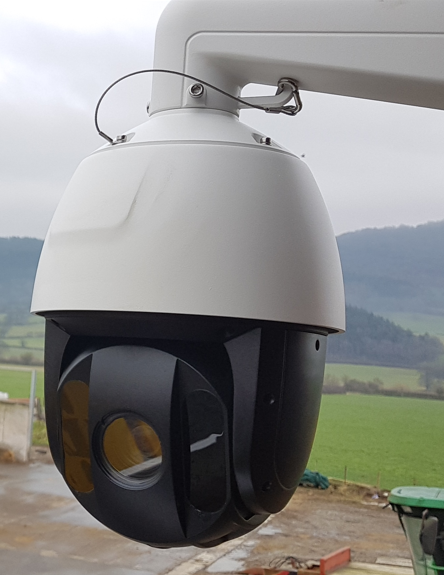

PTZ Cameras

 PTZ (Pan, Tilt, Zoom) cameras offer flexible, powerful coverage with remote control functionality. These movements can be controlled manually from a site office, via a mobile device, or by a professional remote monitoring centre. Many PTZ cameras also feature preset patrol routes, automatically scanning defined areas at scheduled intervals, or pick up movement and move to capture it as it unfolds.

• Pan side-to-side, tilt up and down, and zoom in and out;

• Can be controlled from a site office or remote monitoring centre;

• Preset patrols automatically scan large areas.



The ability to zoom in without losing image clarity allows operators to identify issues quickly, from animal welfare checks to unauthorised access. In many cases, one PTZ camera can replace several fixed cameras, making them a cost-effective solution. Grants may also be available depending on application and location. PTZ cameras are most often utilised in livestock areas for animal welfare, on storage compounds, and in town centres.

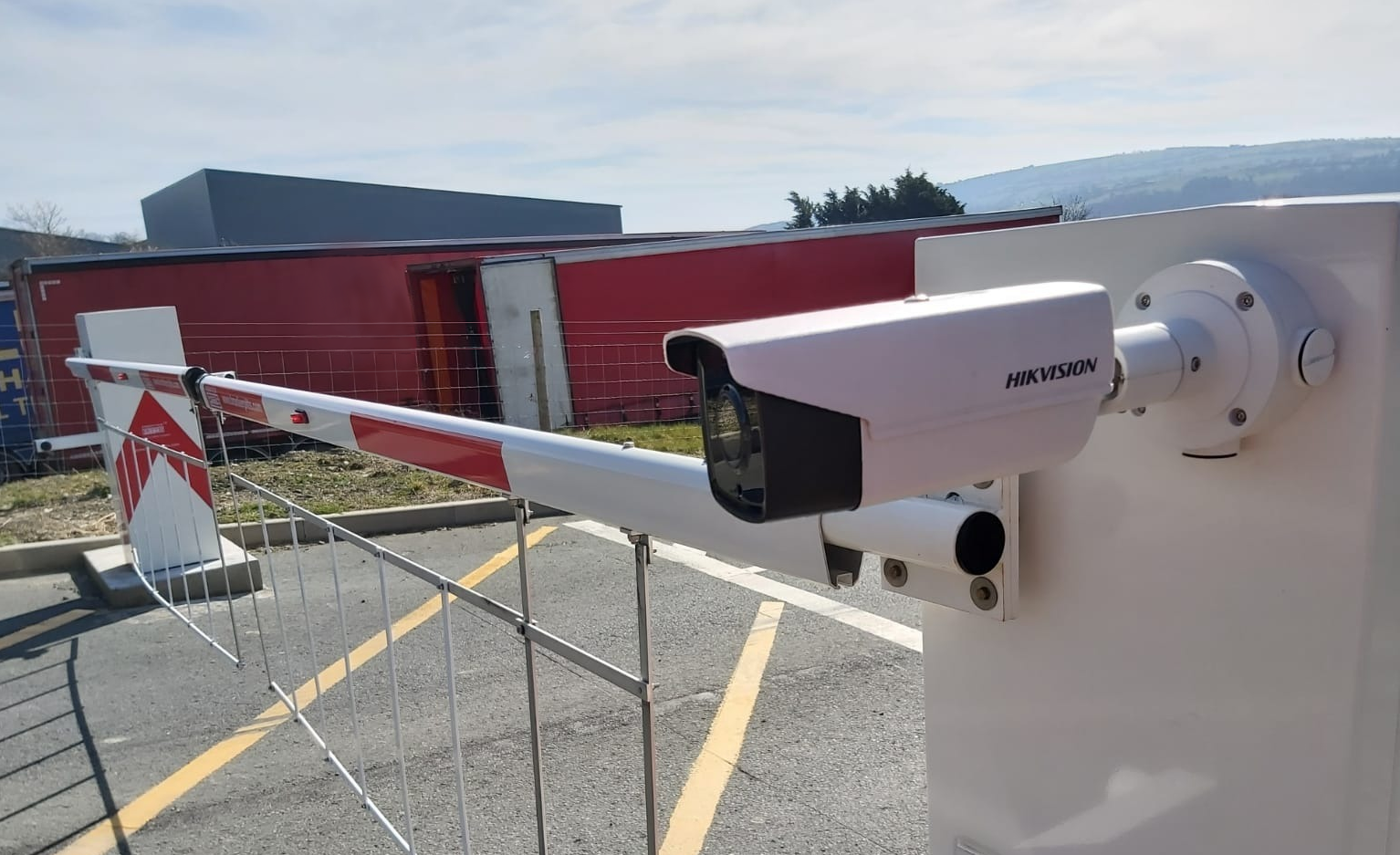

 ANPR Cameras

ANPR (Automatic Number Plate Recognition) cameras are designed specifically to capture vehicle number plates. Due to the reflective nature of number plates, standard CCTV cameras often struggle in low light to capture numberplates. ANPR cameras overcome this, making them invaluable for both security and access management. As they have a very specific job, only capturing numberplates, they are often paired with an overview camera that views other specifics such as the car model.

• Automatically log vehicles entering and leaving a site

• Ideal for Access Control Systems and authorised entry systems

• Capture number plates even at night

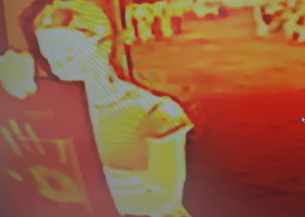

Thermal Imaging Cameras

 Thermal imaging cameras detect heat rather than visible light, allowing them to work in complete darkness and poor weather conditions. Thermal cameras can be programmed to trigger alerts if temperatures exceed set limits, allowing for rapid response before a problem escalates.

• Real-time temperature monitoring;

• Early warning fire detection;

• Detect heat loss or insulation issues in buildings;

• Support animal welfare, particularly for temperature-sensitive livestock.


Like ANPR cameras, Thermal Imaging cameras are often paired with an overview camera.

Fisheye Cameras

Fisheye cameras use an ultra-wide-angle lens, capturing up to 360-degree views. Although the image appears distorted, modern software allows views to be de-warped for easier monitoring.

• Cover a large area with a single camera

• Reduce the number of cameras required on site

• Ideal for open spaces such as large yards, factory floors, or storage areas



And honourable mention to the Alarm side:

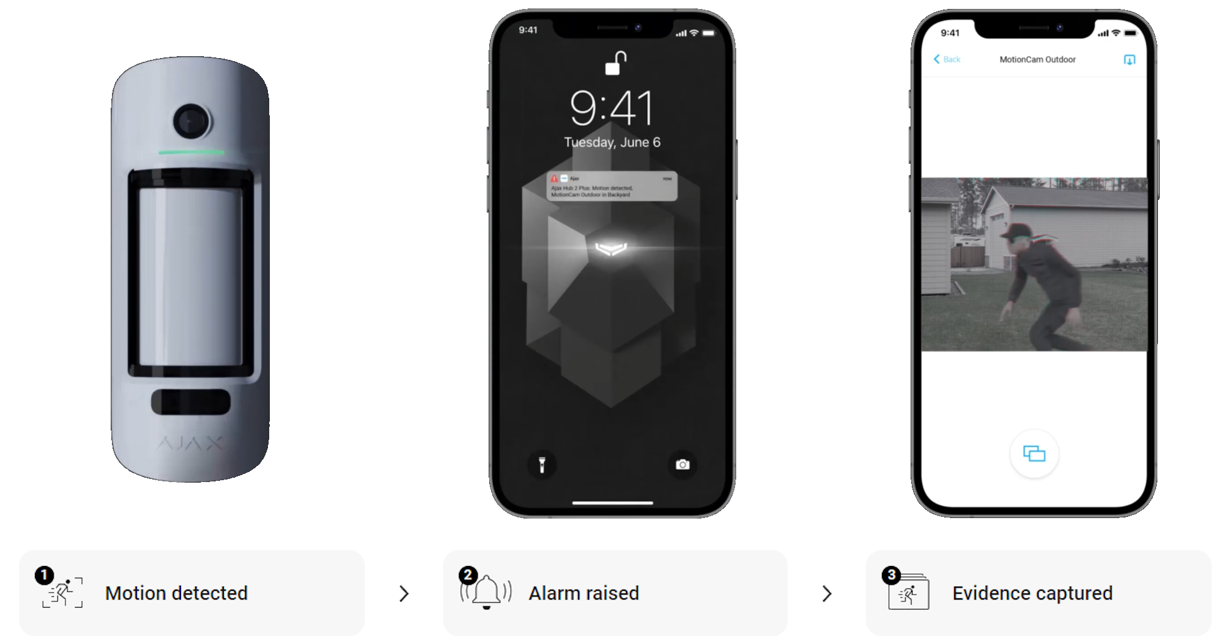

Video Motion Detectors (VMDs)

Most CCTV cameras use motion detecting algorithms to record only when motion is detected, and therefore cut the amount of footage being captured by not recording when nothing is moving. It is not a particularly new revolution, although it is extremely handy.

Where VMDs differ is that they are advanced hybrid alarm sensors with a built-in camera. Essentially they are an alarm system, but you know exactly who set off the alarm when it alerts to your mobile.

By combining alarm technology with video verification, it can offer one of the most advanced forms of site protection. Unlike traditional motion sensors in alarm systems, VMDs include a built-in camera, which captures images or sometimes video clips when triggered. The algorithms that they use are sophisticated, only identifying human movement, which eliminates false alarms caused by animals, moving foliage, or machinery.

• Capture images when motion is detected;

• Highly intelligent algorithms eliminate false alerts;

• Trigger alerts only when a human is detected;

• Instant notifications sent directly to your phone.



These systems provide reliable, proactive prevention, ensuring you’re alerted to genuine threats without being disturbed by animals, weather, or moving machinery.

Choosing the Right CCTV Solution

The most effective surveillance systems combine multiple camera types, strategically placed to suit your site layout and operational needs. Whether your priority is security, efficiency, compliance, or animal welfare, the right system can make managing your site simpler and more cost-effective.

If you’d like help designing a CCTV and alarm system tailored to your business, O.R.P Surveillance can provide expert advice, installation, and ongoing support.
